6430017-1 Battery
Description

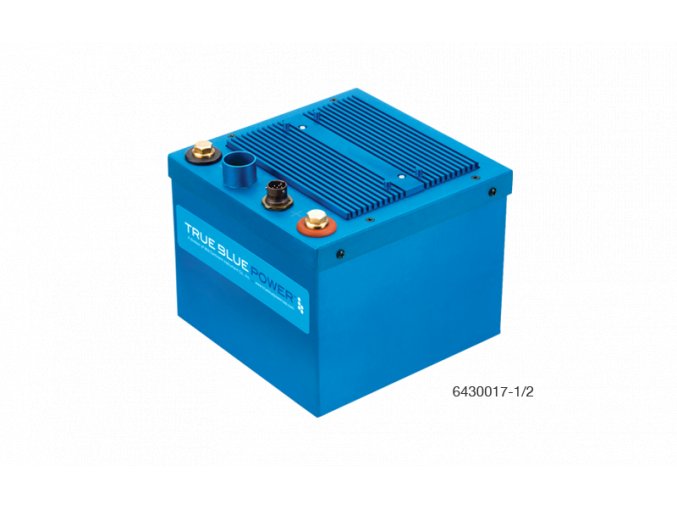

Lithium aviation battery True Blue Power typ TB17 6430017-1
26.4 VDC, 17 Ah, Lithium-ion, TSO
- 17 amp-hour battery nominal at 23°C/73.4°F
- Weighs 16 lbs. — 45% lighter than lead-acid or nickel-cadmium alternatives
- Advanced Nanophosphate® lithium-ion cell chemistry — 3x the energy per kilogram when compared to lead-acid and nickel-cadmium cells
- 7 engine starts in 7 minutes
- 30 minutes (at 34 amps) for complete recharge when the battery is fully discharged
- Superior performance at extreme temperatures (-40°C/-40°F to 70°C/158°F)
- Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
- Communicates battery status to the cockpit
- Higher voltage during engine start — Less wear, less maintenance and increased useful life
- 2-year maintenance interval — 50 – 90% savings on maintenance costs
- 8 years (average) useful life
- Designed and built in Wichita, Kansas, USA
- FAA TSO Certified
- 2-year limited warranty
